GS-EVM-DRG-100V7R-GS2
Part NumberGS-EVM-DRG-100V7R-GS2
DownloadsTechnical Manual

DISCONTINUED

EVALUATION MODULE: GS-EVM-DRG-100V7R-GS2

100 V Driver GaN – Integrated 7mΩ DC/DC Power Stage

The GS-EVM-DRG-100V7R-GS2 DrGaN SMT power stage is a complete input power stage for any DC-DC topology requiring high-efficiency conversion & high-power density.

Features and Benefits

  • Integrated 7mΩ half-bridge power stage
  • 10 x 7.8 mm2 SMT surface mount technology package
  • Includes two GS61008 Die (100V 7mW E-mode GaN) onboard
  • Dual PWM input
  • Ultra-low RQJC
  • Ultra-fast rise/fall time
  • High power density at 1MHz+ fSW operation
  • High efficiency for 48V board power
  • Small footprint

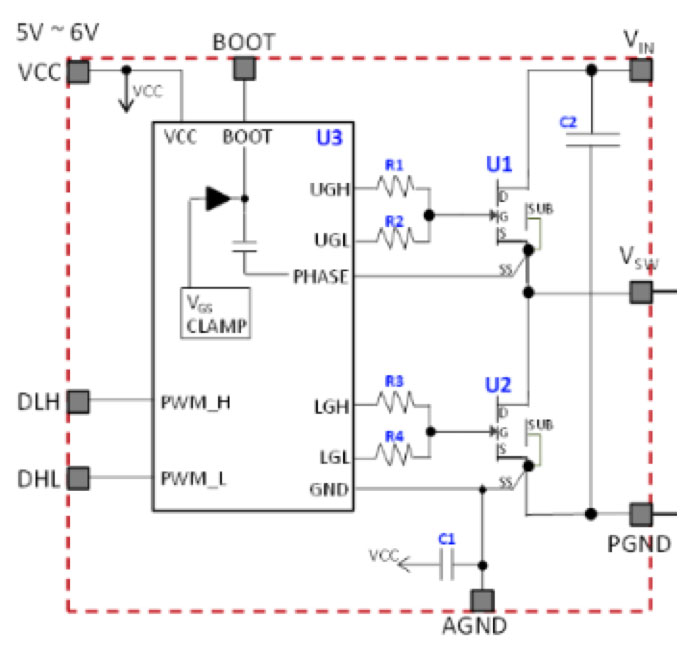

Block Diagram

Applications

  • 48 V Step Down Converters
  • CPU/GPU/DDR
  • High-performance Class D Audio systems
  • Forward Converter, ZVS, Buck/Boost topologies

Evaluation Board
